IMPACT   ACCESSORIES

Metric Hex Bit Sockets Fractional Hex Bit Sockets
Regular Extensions Square Adaptors
Double Male Extension Double Female Adaptors

Universal Joint





3/8" METRIC HEX BIT SOCKETS
HEX A/F
MM		 MODEL
NO.		 BIT
LENGTH		 OAL
mm		 Wt.
Kg.
4
5
6		 BS-38 04M
BS-38 05M
BS-38 06M		 15.0
15.0
15.0		 45.0
45.0
45.0		 0.035
0.035
0.035
8
10		 BS-38 08M
BS-38 10M		 15.0
15.0		 45.0
45.0		 0.045
0.050

1/2" METRIC HEX BIT SOCKETS
HEX A/F
mm		 MODEL
NO.		 BIT
LENGTH		 OAL
mm		 Wt.
Kg.
6
8
10		 BS-50 06M
BS-50 08M
BS-50 10M		 15.0
15.0
18.0		 50.0
50.0
55.0		 0.080
0.080
0.090
12
14
17		 BS-50 12M
BS-50 14M
BS-50 17M		 18.0
25.0
25.0		 60.0
60.0
60.0		 0.110
0.125
0.145

3/4" METRIC HEX BIT SOCKETS
HEX A/F
mm		 MODEL
NO.		 BIT
LENGTH		 OAL
mm		 Wt.
Kg.
8
10
12		 BS-75 08M
BS-75 10M
BS-75 12M		 12.0
18.0
25.0		 62.0
18.0
75.0		 0.240
0.250
0.300
14
17
19		 BS-75 14M
BS-75 17M
BS-75 19M		 25.0
35.0
35.0		 75.0
80.0
88.0		 0.300
0.450
0.450
22
24
27		 BS-75 22M
BS-75 24M
BS-75 27M		 40.0
45.0
45.0		 93.0
93.0
100.0		 0.500
0.550
0.700

1" METRIC HEX BIT SOCKETS
HEX A/F
mm		 MODEL
NO.		 BIT
LENGTH		 OAL
mm		 Wt.
Kg.
10
12
14		 BS-100 10M
BS-100 12M
BS-100 14M		 20.0
25.0
25.0		 85.0
90.0
90.0		 0.60
0.65
0.75
17
19
22		 BS-100 17M
BS-100 19M
BS-100 22M		 30.0
30.0
35.0		 95.0
95.0
115.0		 0.80
0.80
0.90
24
27
30		 BS-100 24M
BS-100 27M
BS-100 30M		 45.0
50.0
50.0		 115.0
120.0
120.0		 0.95
1.15
1.20
32
36		 BS-100 32M
BS-100 36M		 50.0
50.0		 120.0
120.0		 1.30
1.30





3/4" FRACTIONAL HEX BIT SOCKETS
HEX A/F
SAE		 MODEL
NO.		 BIT
LENGTH		 OAL
inch		 Wt.
Kg.
5/32
3/16
7/32		 BS-38 05F
BS-38 06F
BS-38 07F		 0.590
0.590
0.590		 1.771
1.771
1.771		 0.080
0.080
0.080
1/4
5/16
3/8		 BS-38 08F
BS-38 10F
BS-38 12F		 0.590
0.590
0.590		 1.771
1.771
1.771		 0.080
0.090
0.110

1/2" FRACTIONAL HEX BIT SOCKETS
HEX A/F
inch		 MODEL
NO.		 BIT
LENGTH		 OAL
inch		 Wt.
lbs.
1/4
5/16
3/8		 BS-50 04F
BS-50 05F
BS-50 06F		 0.590
0.590
0.708		 1.968
1.968
2.165		 0.160
0.175
0.190
7/16
1/2
9/16		 BS-50 07F
BS-50 08F
BS-50 09F		 0.708
0.708
0.984		 2.362
2.362
2.362		 0.200
0.255
0.255

3/4" FRACTIONAL HEX BIT SOCKETS
HEX A/F
inch		 MODEL
NO.		 BIT
LENGTH		 OAL
inch		 Wt.
lbs.
3/8
7/16
1/2		 BS-75 06F
BS-75 07F
BS-75 08F		 0.708
0.708
0.984		 2.559
2.559
2.952		 0.550
0.550
0.660
9/16
5/8
3/4		 BS-75 09F
BS-75 10F
BS-75 12F		 0.984
1.377
1.377		 2.952
3.464
3.464		 0.660
0.715
0.990
13/16
7/8
1		 BS-75 13F
BS-75 14F
BS-75 16F		 1.574
1.574
1.771		 3.661
3.661
3.937		 1.100
1.210
1.210

1" FRACTIONAL HEX BIT SOCKETS
HEX A/F
inch		 MODEL
NO.		 BIT
LENGTH		 OAL
inch		 Wt.
lbs.
1/2
9/16
5/8		 BS-100 08F
BS-100 09F
BS-100 10F		 0.984
0.984
1.181		 3.543
3.543
3.543		 1.43
1.43
1.43
3/4
13/16
7/8		 BS-100 12F
BS-100 13F
BS-100 14F		 1.181
1.771
1.771		 3.740
4.527
4.527		 1.76
1.87
1.98
1
1.1/16
1.1/8		 BS-100 16F
BS-100 17F
BS-100 18F		 1.968
1.968
1.968		 4.724
4.724
4.724		 2.20
2.20
2.42
1.3/16
1.1/4		 BS-100 19F
BS-100 20F		 1.968
1.968		 4.724
4.724		 2.64
2.86

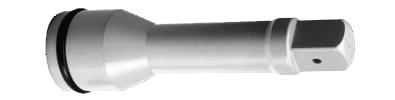

3/8" REGULAR EXTENSIONS
OAL
MM		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs)
75(3")
150(6")
300(12")		 EB-38 75
EB-38 150
EB-38 300		 13.0 (0.511) 22.0 (0.866) 0.09 (0.20)
0.16 (0.35)
0.35 (0.77)

1/2" REGULAR EXTENSIONS
OAL
mm(inch)		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs.)
75 (3")
125 (5")
200 (8")		 EB-50 75
EB-50 125
EB-50 200		 20.0 (0.866) 30.0 (1.181) 0.20 (0.44)
0.27 (0.59)
0.38 (0.83)

3/4" REGULAR EXTENSIONS
OAL
mm(inch)		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs.)
75 (3")
125 (5")
175 (7")		 EB-75 75
EB-75 125
EB-75 175		 25.0 (0.984) 44.0 (1.732) 0.60 (1.32)
0.80 (1.76)
1.00 (2.20)
250 (10")
330 (13")		 EB-75 250
EB-75 330		 1.20 (2.64)
1.50 (3.30)

1" REGULAR EXTENSIONS
OAL
mm(inch)		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs.)
100 (4")
125 (5")
150 (6")		 EB-100 100
EB-100 125
EB-100 150		 36.0 (1.417) 54.0 (2.125) 1.10 (2.42)
1.30 (2.86)
1.50 (3.30)
180 (7")
250 (10")
330 (13")		 EB-100 180
EB-100 250
EB-100 330		 1.75 (3.85)
2.00 (4.40)
2.45 (5.39)

1.1/2" REGULAR EXTENSIONS
OAL
mm (inch)		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs.)
150 (6")
304 (12")		 EB-150 150
EB-150 304		 52.0 (2.047) 86.0 (3.385) 3.90 (8.58)
6.30 (13.86)



3/8" SQUARE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs)
3/8" F x 1/2" M
3/8" F x 3/8" M		 SA-38F 50M
SA-38F 38M		 22.0 (0.866) 35.0 (1.377)
32.0 (1.259)		 0.70 (1.54)
0.50 (1.10)

1/2" SQUARE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1/2" F X 3/4" M SA-50F 75M 30.0 (1.181) 50.0 (2.834) 0.17 (0.37)

3/4" SQUARE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
3/4" F X 1/2" M
3/4" F X 1" M		 SA-75F 50M
SA-75F 100M		 44.0 (1.732) 56.0 (2.204)
65.0 (2.559)		 0.33 (0.72)
0.45 (0.99)

1" SQUARE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1" F X 3/4" M
1" F X 1.1/2" M
1" F X #5 M,		 SA-100F 75M
SA-100F 150M
SA 100F SPLDM		 54.0 (2.125) 70.00 (2.755)
90.00 (3.543)
110.0 (4.330)		 0.64 (1.40)
0.90 (1.98)
1.20 (2.6

1.1/2" SQUARE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1.1/2" F X 1" M
1.1/2" F X 2.1/2" M
1.1/2" F X #5 M		 SA-150F 100M
SA-150F 250M
SA-150F SPLDM		 86.0 (3.386) 100.0 (3.937)
113.0 (4.448)
115.0 (4.527)		 1.98 (4.37)
3.92 (8.65)
4.20 (9.25)

2.1/2" SQUARE ADAPTORS
SIZE MODEL NO. HEAD DIA
mm (inch)		 OAL
mm (inch)
2.1/2" F X 1.1/2" M
2.1/2" F X 3.1/2" M		 SA-250F 150M
SA-250F 350M		 127.0 (5.000) 140.0 (5.511)
185.0 (7.283)

UNIVERSAL JOINT

3/8" UNIVERSAL JOINT
SQUARE
DRIVE		 MODEL
NO.		 DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs)
3/8" UJ-38 22.0 (0.866) 52.0 (2.047) 0.12 (0.27)

1/2" UNIVERSAL JOINT
SQUARE
DRIVE		 MODEL
NO.		 DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1/2" UJ-50 30.0 (1.181) 72.0 (2.834) 0.25 (0.55

3/4" UNIVERSAL JOINT
SQUARE
DRIVE		 MODEL
NO.		 DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
3/4" UJ-75 44.0 (1.732) 94.0 (3.700) 0.60 (1.32)

1" UNIVERSAL JOINT
SQUARE
DRIVE		 MODEL
NO.		 DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1" UJ-100 54.0 (2.125) 117.0 (4.606) 1.20 (2.64)

1.1/2" UNIVERSAL JOINT
SQUARE
DRIVE		 MODEL
NO.		 DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1.1/2" UJ-150 86 (3.386) 158 (6.220) 3.85 (8.47)

2.1/2" UNIVERSAL JOINT
SQUARE
DRIVE		 MODEL
NO.		 DIA
mm (inch)		 OAL
mm (inch)
2.1/2" UJ-250 127.0 (5.000) 232.0 (9.133)

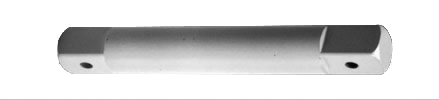

DOUBLE MALE EXTENSIONS


3/8" DOUBLE MALE EXTENSIONS
OAL
MM		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs)
75 (3")
125 (5")
250 (10")		 EB-38 75DM
EB-38 125DM
EB-38 250DM		 13.0 (0.511) 9.3   (0.366) 0.06 (0.13)
0.12 (0.26)
0.30 (0.66)

1/2" DOUBLE MALE EXTENSIONS
OAL
mm (inch)		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs.)
50 (2")
127 (5")
254 (10")		 EB-50 50DM
EB-50 127DM
EB-50 254DM		 17.0 (0.669) 12.7 (0.500) 0.12 (0.26)
0.23 (0.50)
0.30 (0.66)

3/4" DOUBLE MALE EXTENSIONS
OAL
mm (inch)		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs.)
75 (3")
125 (5")
180 (7")		 EB-75 75DM
EB-75 125DM
EB-75 180DM		 25.0 (0.984) 19.0 (0.750) 0.40 (0.88)
0.55 (1.21)
0.75 (1.65)
250 (10")
330 (13")
410 (16")		 EB-75 250DM
EB-75 330DM
EB-75 410DM		 0.95 (2.09)
1.05 (2.31)
1.60 (3.50)

1" DOUBLE MALE EXTENSIONS
OAL
mm (inch)		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs.)
75 (3")
125 (5")
180 (7")		 EB-100 75DM
EB-100 125DM
EB-100 180DM		 35.0 (1.377) 25.0 (1.000) 0.70 (1.54)
1.00 (2.20)
1.45 (3.19)
250 (10")
330 (13")		 EB-100 250DM
EB-100 330DM		 1.70 (3.74)
2.20 (4.84)
380 (15")
430 (17")		 EB-100 380DM
EB-100 430DM		 2.50 (5.50)
3.00 (6.60)

1.1/2" DOUBLE MALE EXTENSIONS
OAL
mm (inch)		 MODEL
NO.		 SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)		 Wt.
Kg. (lbs.)
100 (4")
125 (5")
250 (10")
510 (20")		 EB-150 100DM
EB-150 125DM
EB-150 250DM
EB-150 510DM		 52.0 (2.047) 38.1 (1.500) 2.50 (5.50)
2.80 (6.16)
3.60 (7.92)
5.10 (11.20)

2 1/2" DOUBLE MALE EXTENSIONS
OAL
mm (inch)		 MODEL NO. SHANK DIA
mm (inch)		 HEAD DIA
mm (inch)
125 (5")
150 (6")
200 (8")		 EB-250 125DM
EB-250 150DM
EB-250 200DM		 85.0 (3.346) 63.5 (2.500)
250 (10")
380 (15")
510 (20")		 EB-250 250DM
EB-250 380DM
EB-250 510DM





DOUBLE FEMALE ADAPTORS

3/8" DOUBLE FEMALE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs)
3/8" F x 1/2" F
3/8" F x 3/8" F		 SA-38F 50F
SA-38F 38F		 22.0 (0.866) 38.0 (1.496)
35.0 (1.377)		 0.90 (1.98)
0.70 (1.54)

1/2" DOUBLE FEMALE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1/2" F X 1/2" F
1/2" F X 3/4" F		 SA-50F 50F
SA-50F 75F		 30.0 (1.181) 39.0 (1.534)
47.0 (1.850)		 0.16 (0.35)
0.20 (0.44)

3/4" DOUBLE FEMALE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
3/4" F X 1/2" F
3/4" F X 1" F		 SA-75F 50F
SA-75F 100F		 44.0 (1.732) 55.0 (2.165)
63.00 (2.480)		 0.45 (0.99)
0.57 (1.25)

1" DOUBLE FEMALE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1" F X 3/4" F
1" F X 1" F
1" F X 1.1/2" F		 SA-100F 75F
SA-100F 100F
SA-100F 150F		 54.0 (2.125) 65.0 (2.559)
70.00 (2.755)
80.0 (3.149)		 0.75 (1.65)
0.95 (2.09)
1.10 (2.42)

1.1/2" DOUBLE FEMALE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)		 Wt.
Kg. (lbs.)
1.1/2" F X 1" F
1.1/2" F X 1.1/2" F
1.1/2" F X #5 F		 SA-150F 100F
SA-150F 150F
SA-150F SPLDF		 86.0 (3.386) 80.0 (3.149)
95.0 (3.740)
110.0 (4.330)		 2.30 (5.06)
3.60 (7.92)
4.50 (9.90)

2 1/2" DOUBLE FEMALE ADAPTORS
SIZE MODEL
NO.		 HEAD DIA
mm (inch)		 OAL
mm (inch)
2.1/2" F X 1.1/2" F
2.1/2" F X 2.1/2" F
2.1/2" F X 3.1/2" F		 SA-250F 150F
SA-250F 250F
SA-250F 350F		 127.0 (5.000) 115.0 (4.527)
120.0 (4.724)
162.0 (6.377)
